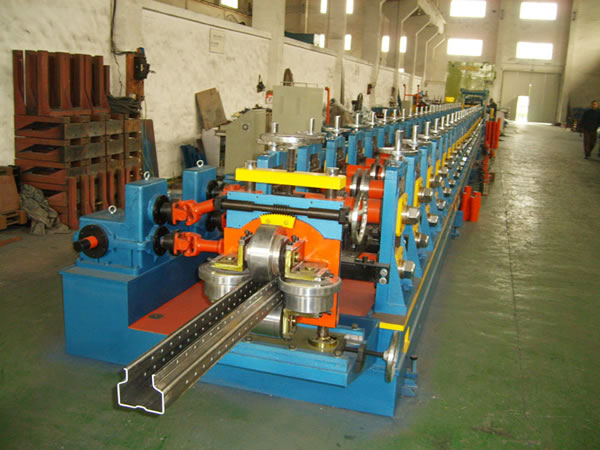

Upright Rack Roll Forming Machine
Introduction

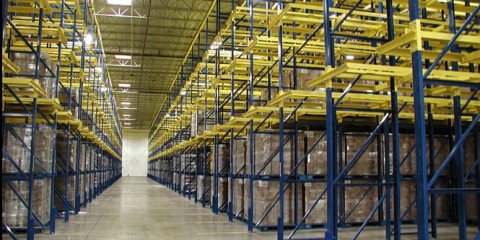

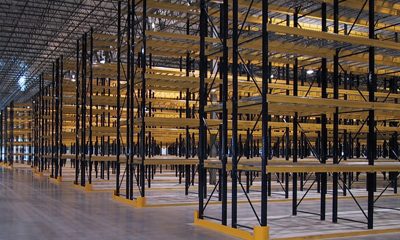

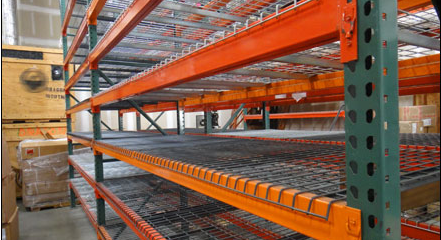

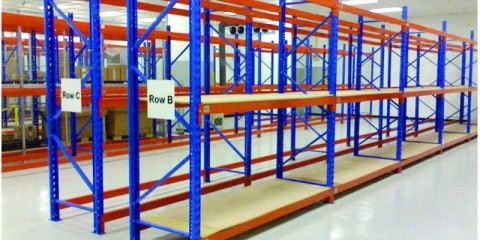

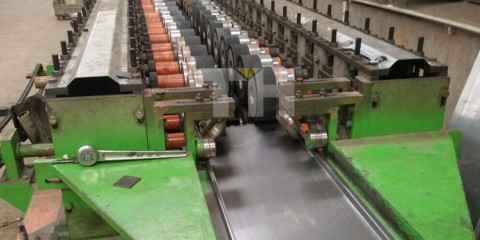

The rack roll forming machine consists of de-coiler, servo feeder, hole press, main roll forming machine and hydraulic shear units. The products made by rack roll forming machine are used as racks and shelves for supporting the daily commodities in supermarket, shops and factory warehouse.
Technical Parameter
| Roller station | 24 stations |
| Material thickness | 1.5-3.0mm |
| Main motor power | 15Kw |
| Machine size | 9M x 1.4M x 1.2M |
| Forming speed | 12-16m/min |

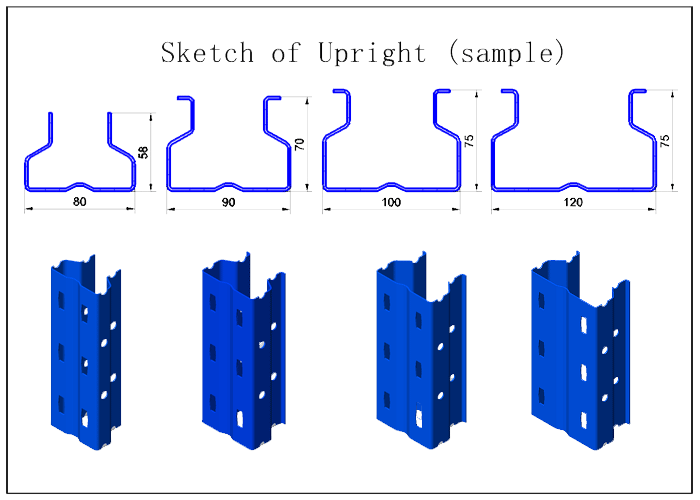

| Effective width | 75-80mm/95-100mm |
Keywords：tire rack, bicycle display rack, mobile ladder, rack-supported mezzanine, structural mezzanine
Racking Roll Forming Machine Advantage：

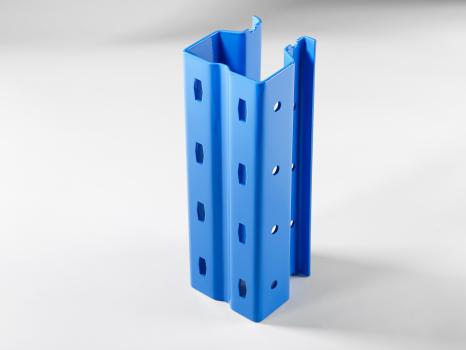

- We are professional manufacturer of rack roll forming machine and have lots successful experiences. Our machine can make the rack upright from thickness 1.5-3.0mm.
- Press punching machine is adopted to make punching holes more accuracy.
- Our racking roll forming machine is fully automatically controlled by PLC control cabinet, there are multi security protection setting during the production process.
- Roller Material with GCr15, Shaft material with 40Cr, which ensures most durability of the machine.
- Gearbox transmission ensures high intensity running and long time life time of the machine.
