Introduction

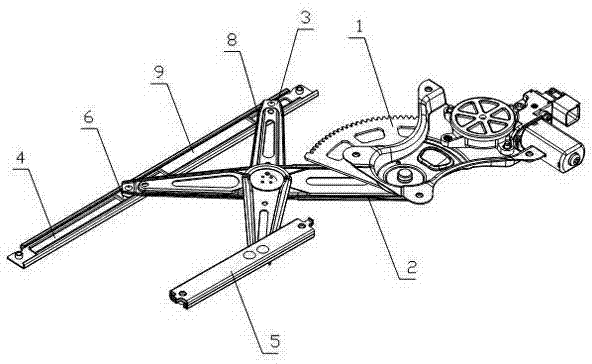

Car Window Lifter Rail Roll Forming Machine is designed to manufacture car window lifter rail for the car window regulator. Nowdays most modern vehicles feature electric window lifters (power windows). Window lifters in new vehicles are reliable products. Should a fault occur, it usually affects the mechanics, which can be replaced separately from the engine.
The car window lifter rail roll forming machine is composed of decoiler, main forming punch, cutting, and outer table. Fully automatically controlled by PLC control system, the machine has the advantage of easy operation and fast efficiency.
Working Process
Decoiler- main forming- hydraulic punch- cutting- outer table
Main Technical Parameter
- material thickness：1.2-2.0mm
- roller stations: 12 stations
- roller material:GCr15
- shaft material:40Cr
- main motor power: 11Kw
- hydraulic cutting power: 7.5Kw
- control system:PLC Panasonic

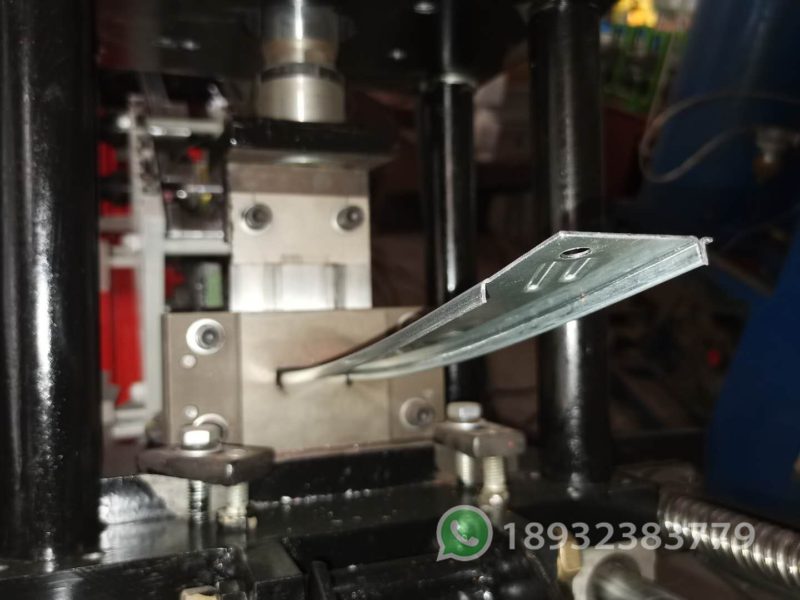

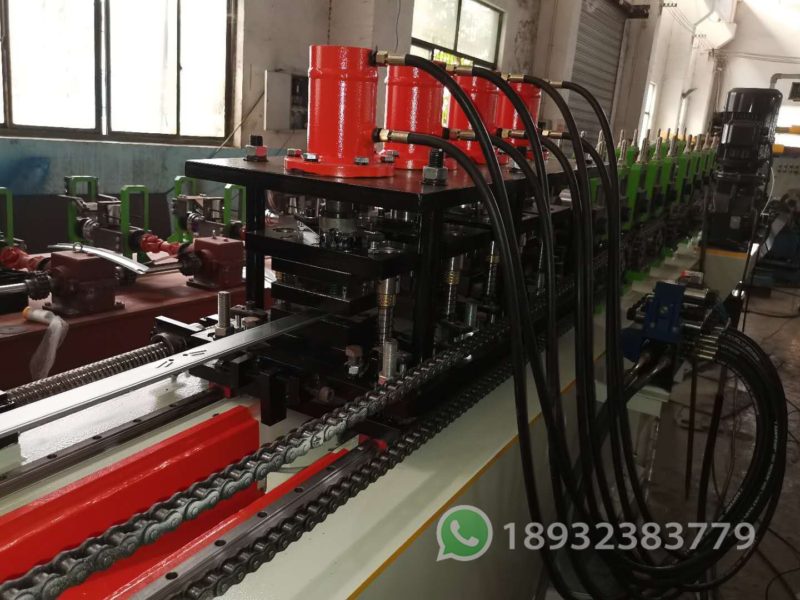

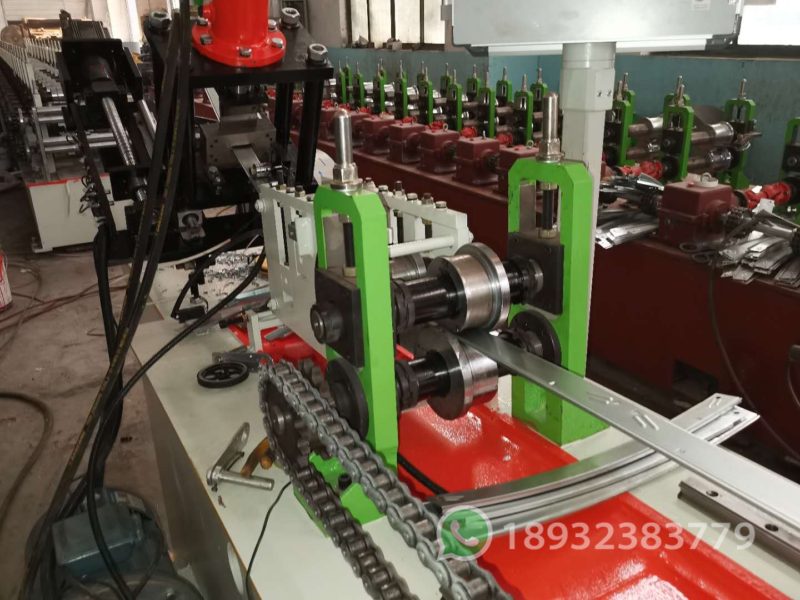

Machine Photo
car-window-lifter-rail-roll-forming-machine
car-window-lifter-rail-roll-forming-machine
