High Precision Automatic Steel Coil Slitting Line
High Precision Automatic Steel Coil Slitting Line
Introduction
Steel Coil Slitting Line is for cutting narrow coils from main coils. For widths of up to 3000 mm, thicknesses of up to 25 mm and speeds of up to 400 m/min. This steel coil slitting line is fully automatically controlled by PLC control system with high precision. The machine is composed of decoiler, leveling, slitting, tension stand, recoiler, etc.
Main Technical Parameter
- material: Galvanized steel coil, with thickness 1-6mm
- material width: Max. 2000mm
- coil inside diameter: Ф508mm
- coil outside diameter: Ф1200mm
- slitting speed: 0-120m/min
- cutting width tolerance:±0.05mm

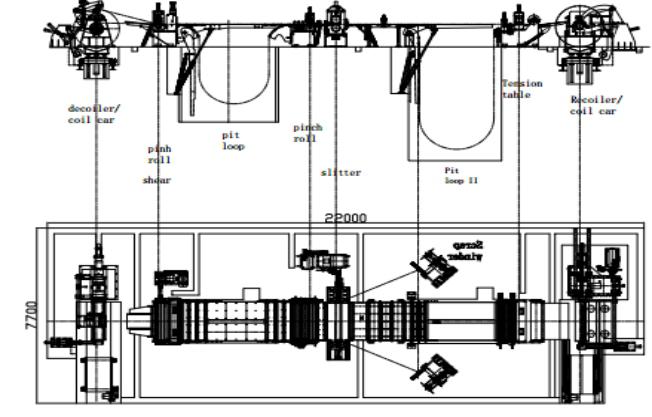

Flow Chart

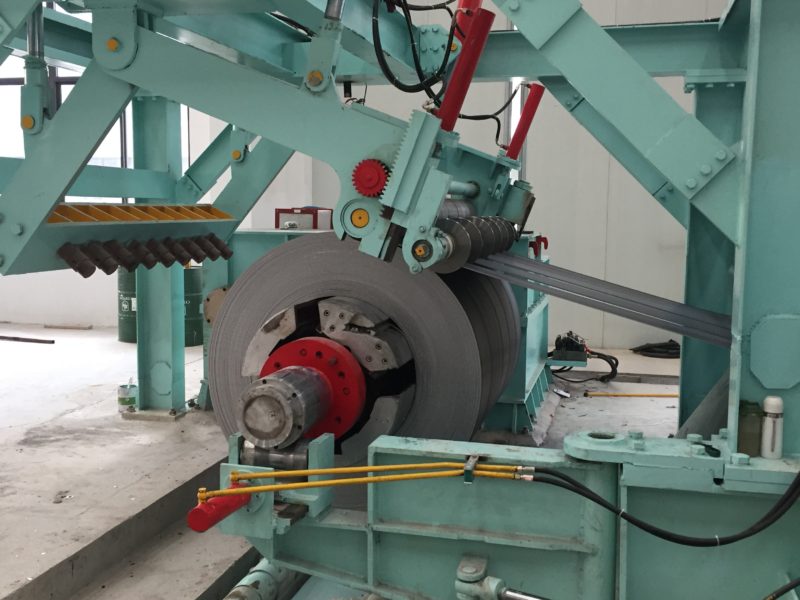

Machine Photo

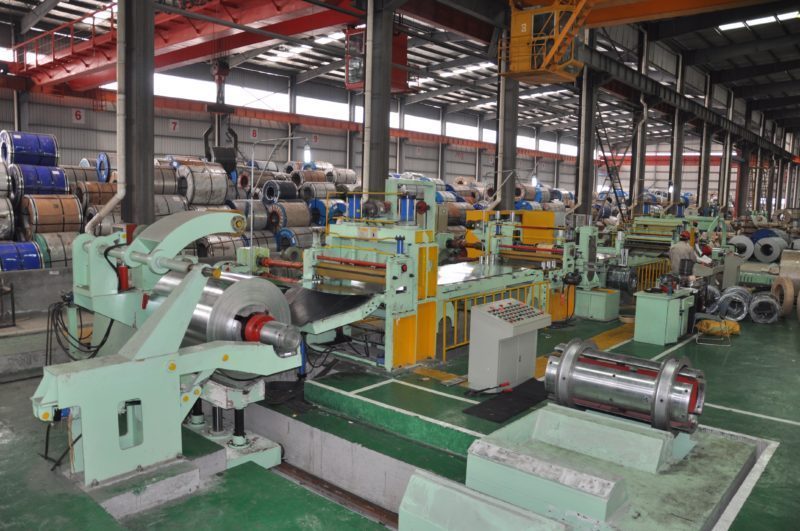

high precision steel coil slitting line machine

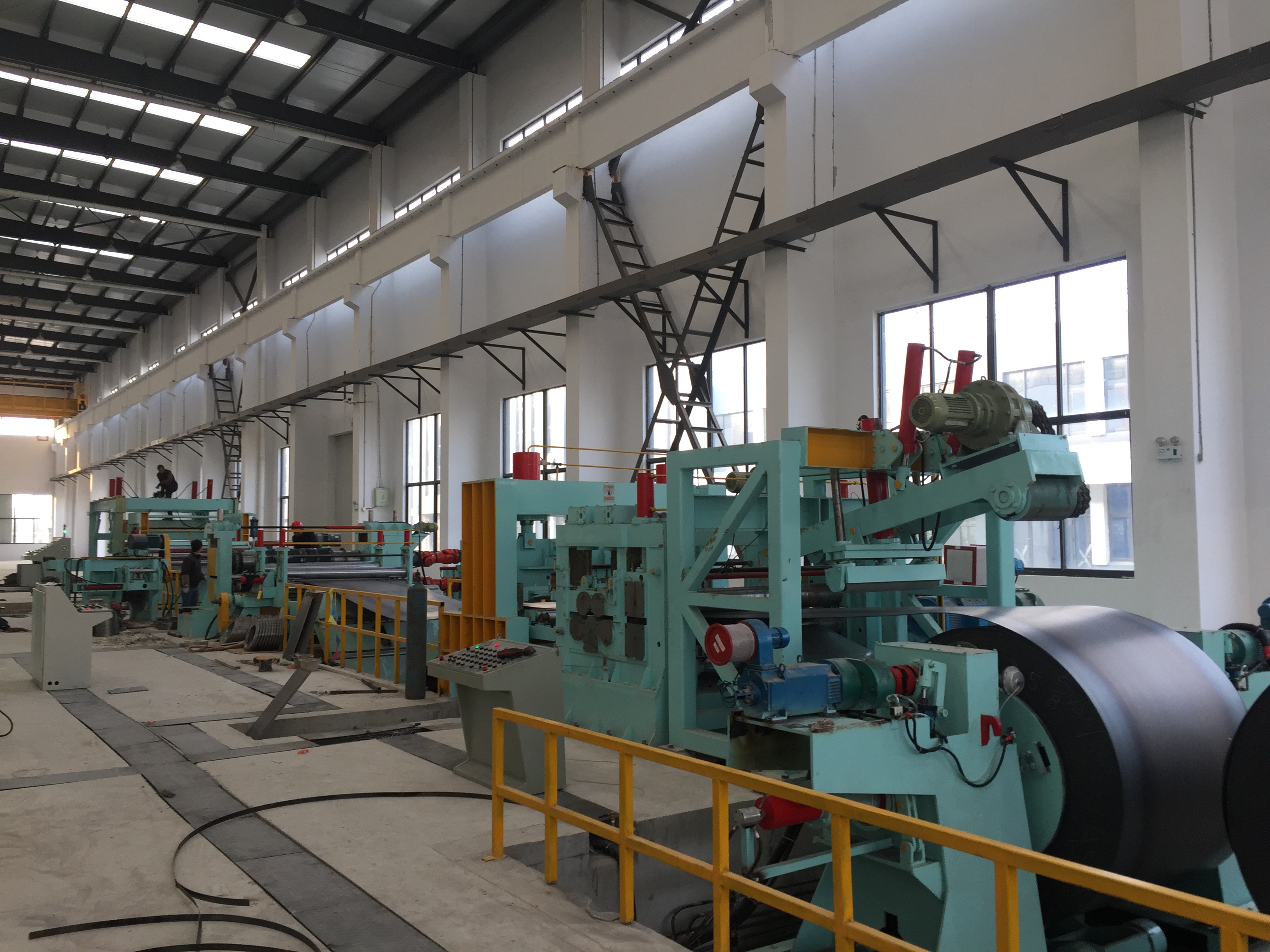

steel coil slitting line machine
