Technical Parameter:
- Suitable material: Galvanized sheet, Zinc Alumina sheet
- Material yield strength: 310Mpa
- Material thickness: 2.5-4.0mm
- Max. Feeding coil width: 1250mm
- Machine working speed: 4-8m//min
- Forming station: approx 18 stations
- Size of roll shaft: Ф120mm
- Roller material: GCr15, quenching HRC 58-62 °
- Total power: approx 180KW
- Power supply: AC440V+/-10%, 50Hz, 3 Phase
- Whole line dimention: about 35M X 4.5M ( L X W )
- Installation height: 4.5m
- Total weith of machine: approx 70 tons
Working Flow:
Loading coil car -> Un-coiler -> guiding device -> feeder -> leveller -> shear roll former -> hydraulic press -> curving -> hydraulic cutting -> stacker -> PLC control

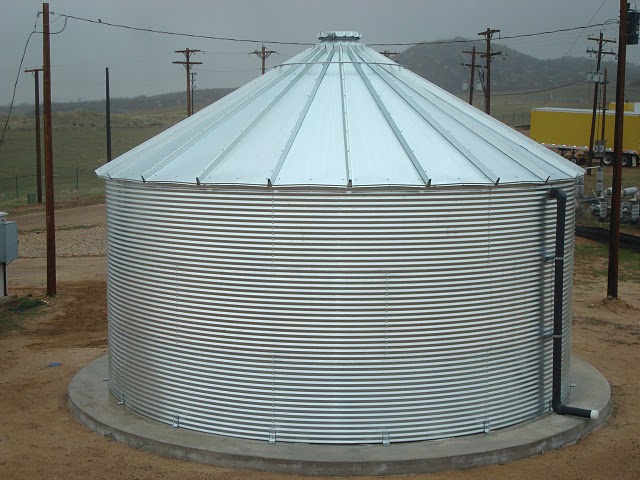

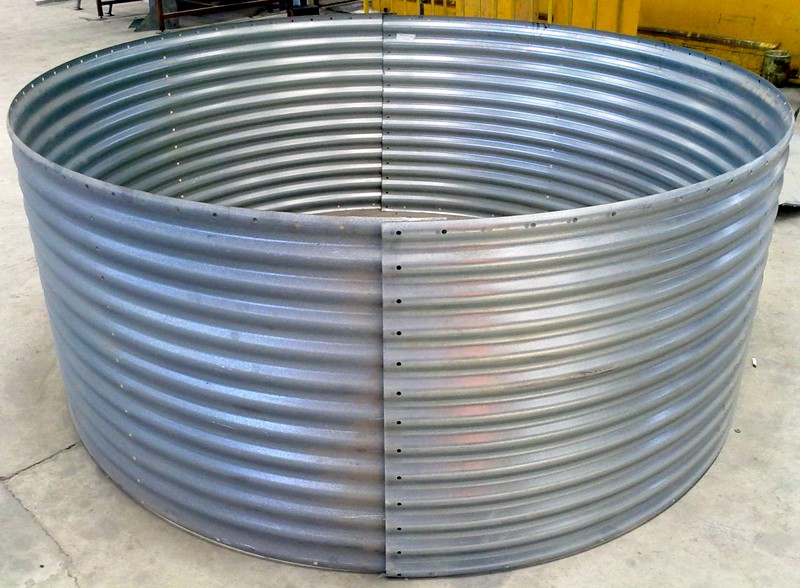

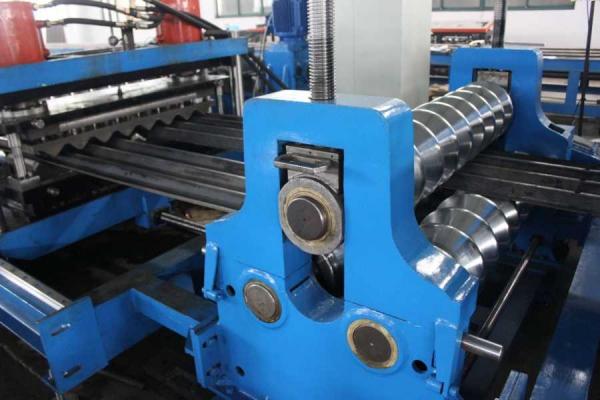

The steel silo corrugagted sheet roll forming machine is widely used to produce Steel silo corrugated sheet, steel silo corrugated panel, silo wall sheet, silo corrugated wall sheet, silo wall panel, silo corrugated wall panel, silo side panel, steel corrugated sheet, steel corrugated wall panel, steel corrugated panel, etc.
