Strut Channel Roll Forming Machine

SKU: strut channel roll forming machine Category:

Strut Channel Roll Forming Machine

Introduction

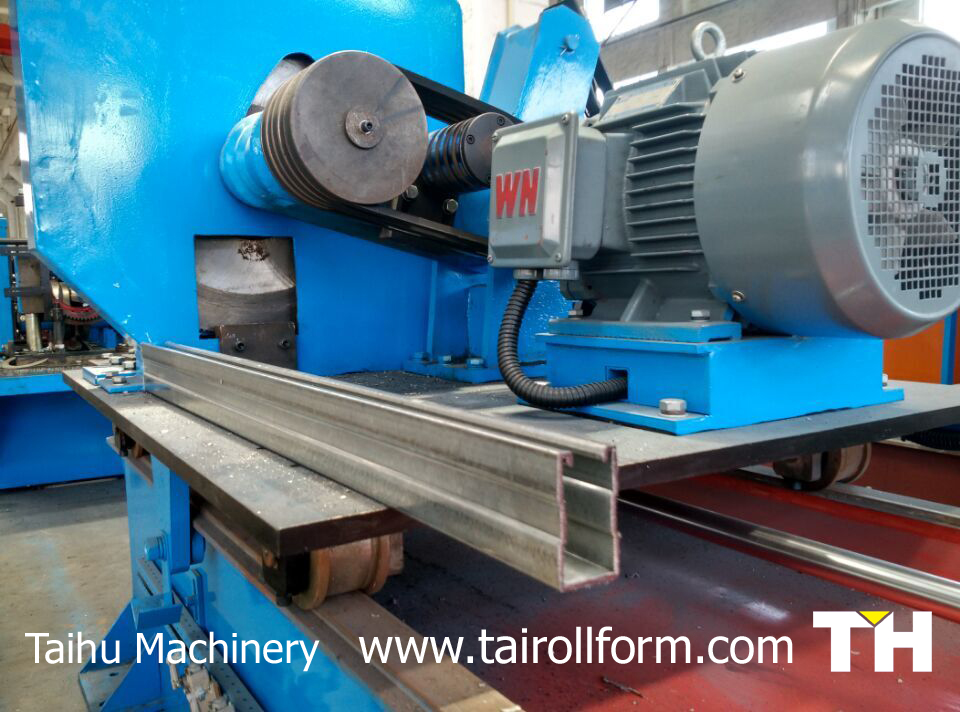

The strut channel roll forming machine can be used to produce strut channels with height from 20mm to 82mm. With gearbox transmission and fly-saw cutting, our strut channel roll forming machines has the advantage of high stability, easy operation and long lifetime.

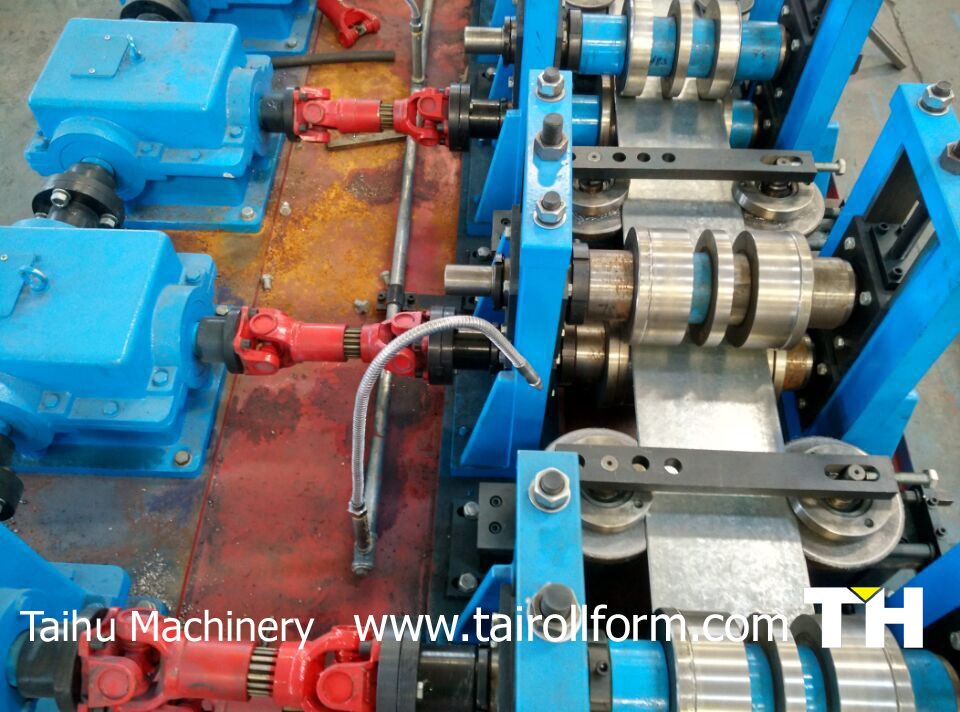

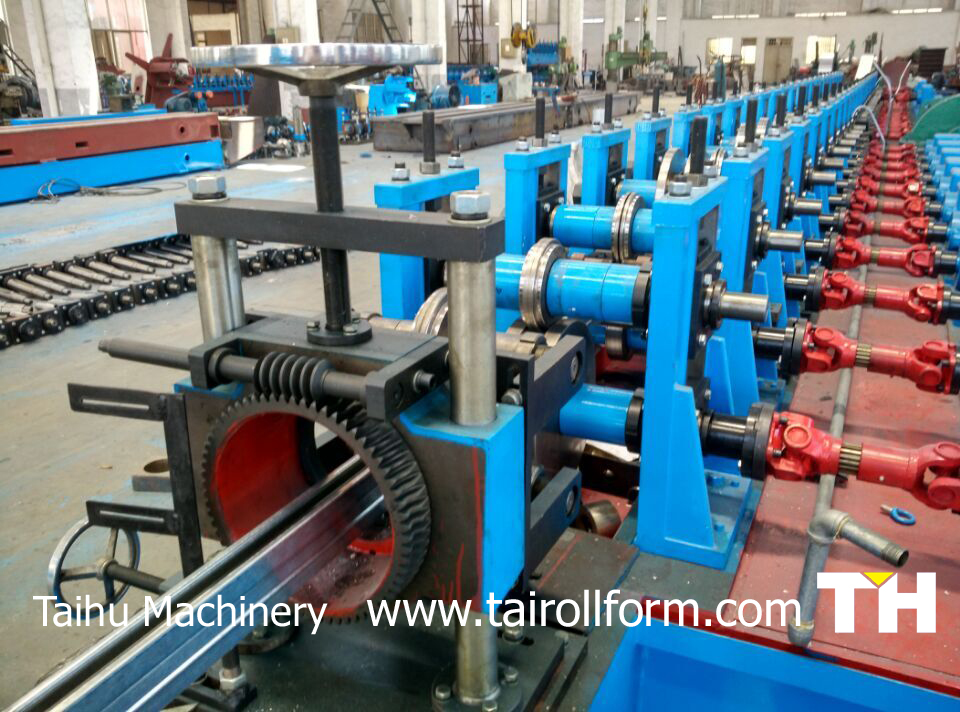

The strut channel roll forming machine is composed of decoiler, punching device, main roll forming, cutting device, hydraulic station, control cabinet, and outer table.

Technical Parameter

Product name  Strut channel roll forming machine
NO. Items Parameters Remark
1 SuitableMaterial Type GI/GL
Width 1000/1200/1250mm Custom
Thickness 0.70—1.20mm
2 ProductSpecifications Length Any length  Programmed
Length Tolerance ±1.5mm/6m
3 Working Speed 25 m/min Standard machine
4 Control System Mitsubishi/Siemens/Panasonic PLC& transducer Custom
5 Total Power About 20KW
6 Total Weight About 15T Up to final design

Application

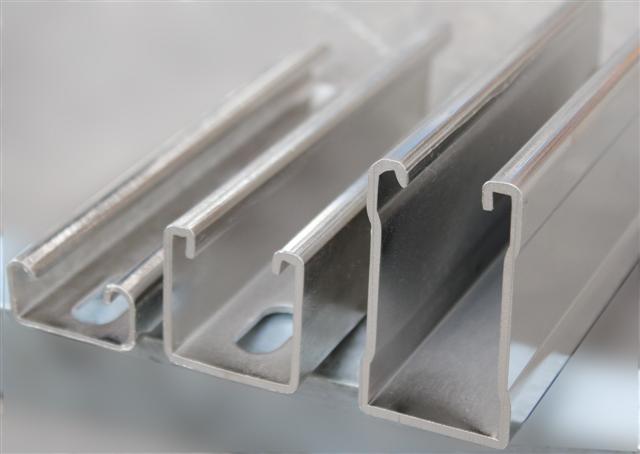

Strut channel  is used to mount, brace, support, and connect lightweight structural loads in building construction. These include pipes, electrical and data wire, mechanical systems such as ventilation, air conditioning, and other mechanical sysyems. Strut channel is also used for other applications that require a strong framework, such as workbenches, shelving systems, equipment racks,etc. Specially made sockets are available to tighten nuts, bolts, etc, inside the channel, normal sockets are unable to fit through the opening.









Strut Channel Roll Forming Machine Advantage

  • We are manufacturer specialized in struct channel roll forming       machine.
  • Rich experience of 30 years to make roll forming machine.
  • Good experience for export more than 80 countries.
  • Provide best price, good quality and fast delivery.
