Patented New Type Racking Box Beam Cold Roll Forming Machine

Patented New Type Racking Box Beam Cold Roll Forming Machine

1.Machine Advantage

• Save material at least 53mm
• Save 2 labor Cost
• smooth cutting surface direct can go to next welding process, perfect.

2. Working Process

Decoiler- Leveling- Main roll forming- Cutting- Outer Table

3. Main Technical Parameter

• Material thickness: 1.5-2mm
• Forming speed: 0-15m/min
• Hydraulic Decoiler capacity: 6 Tons
• roller stations: 28 stations
• roller material: Cr12
• shaft diameter: Φ80mm, material: GCr15, HRC55-58
• main motor power: 22Kwx 2
• Servo Cutting motor power: 22Kw
• Drive Way: Gearbox drive
• Cutting length tolerance: ±1.0mm
• Control system: PLC Panasonic, Japan
• Encoder: Omron
• Low voltage Electrical parts: Schneider
• Power supply: 380V, 50Hz, 3Phase (adjusted by requirement)
• Machine weight: about 40 Tons
• Main machine size: about 14000mmx1900mmx1500mm

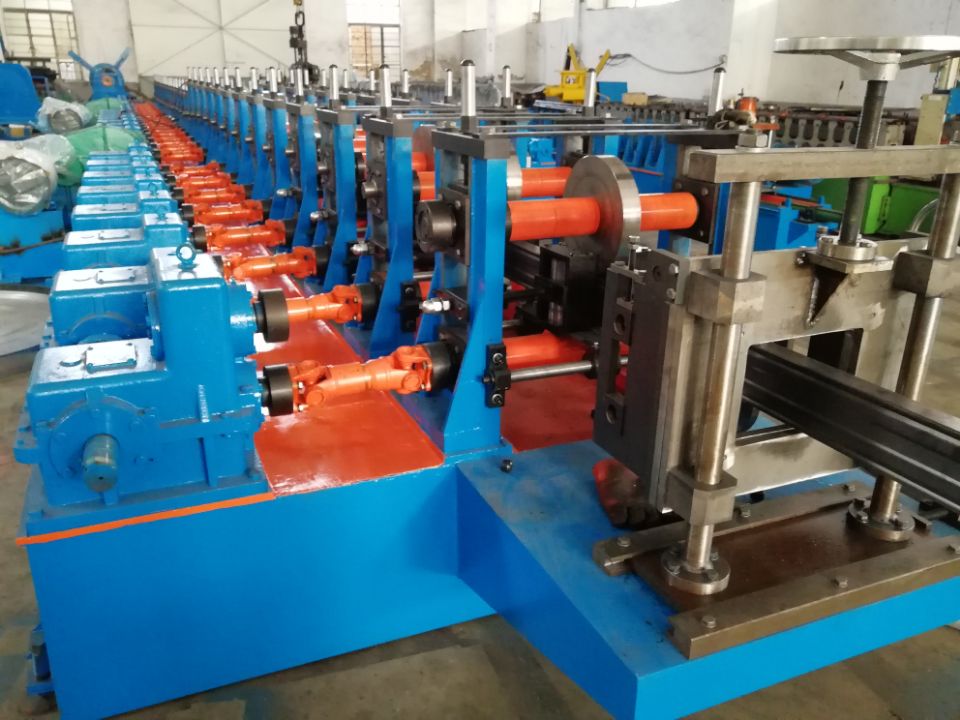

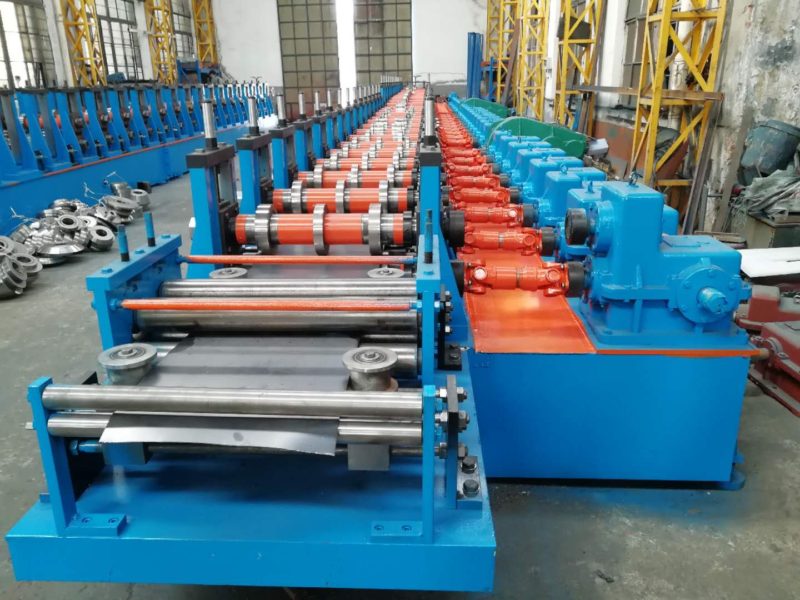

4. Machine Photo

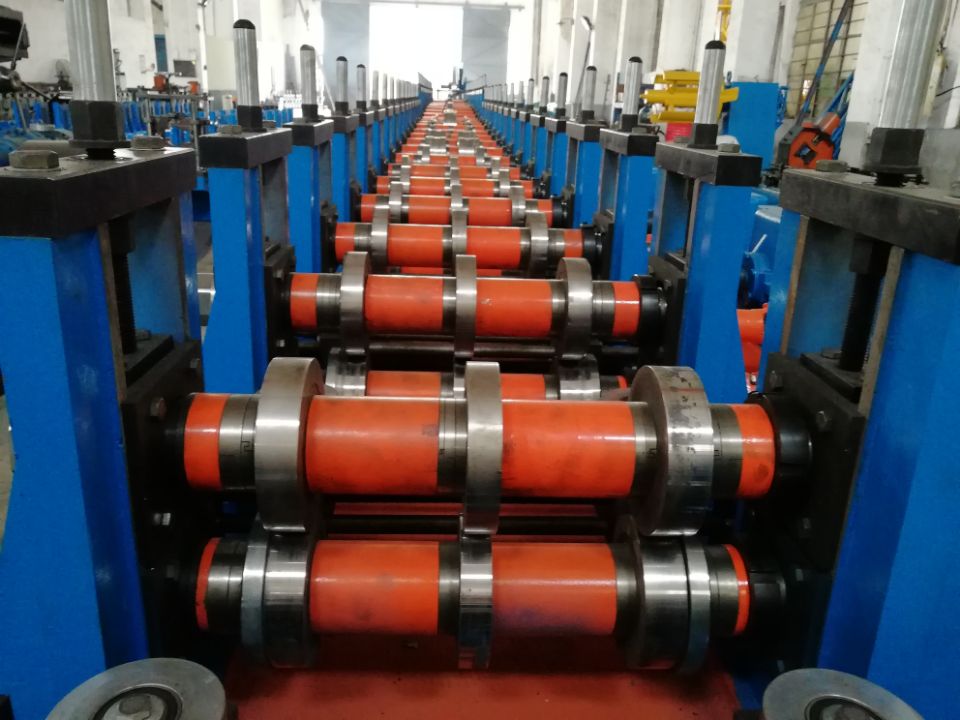

New Type racking box beam forming machine 2

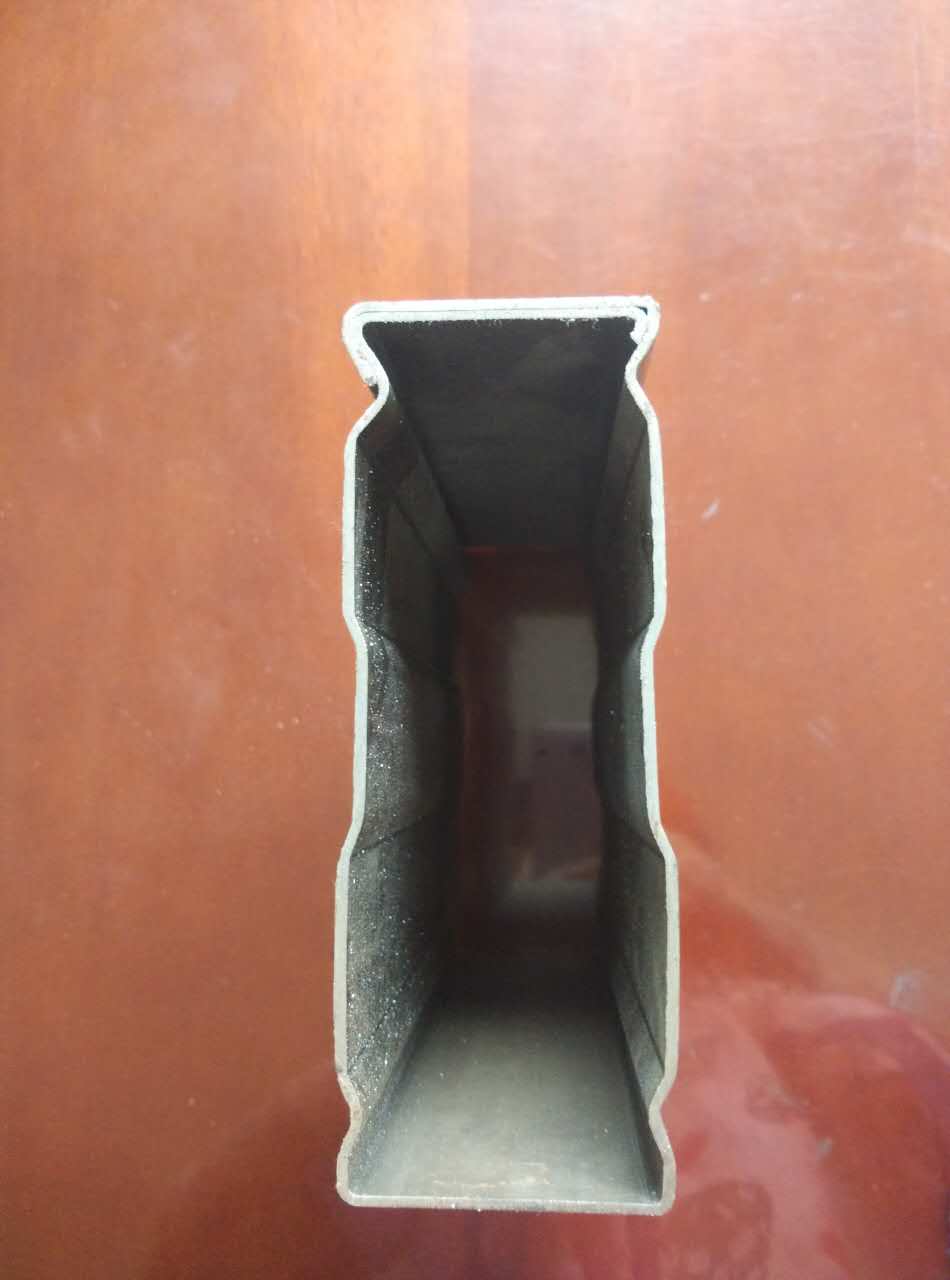

new box beam
