Z Beam Rivet Shelving Roll Forming Machine

Z Beam Rivet Shelving Roll Forming Machine

Introduction

Z Beam Rivet Shelving Roll Forming Machine is used to produce Z beam rivet shelving.  With the advantage that higher capacity than the SSLP Beam, Z Beam is ideal for mid-range spans (wider than the SSLP, less than the SS). The machine is composed of decoiler, leveler, servo feeding, hydraulic punch, main forming machine, cutting device, control box , hydraulic system, etc. The machine is fully automatically controlled by PLC control system, with the advantage of easy operation and fast efficiency.

Technical Parameter

1. roller stations: 15 stations
2. roller material: GCr15
3. shaft material: 40Cr
4. main motor power: 15Kw
5. hydraulic cutting power: 5.5Kw
6. PLC brand: Panasonic

Machine Photo

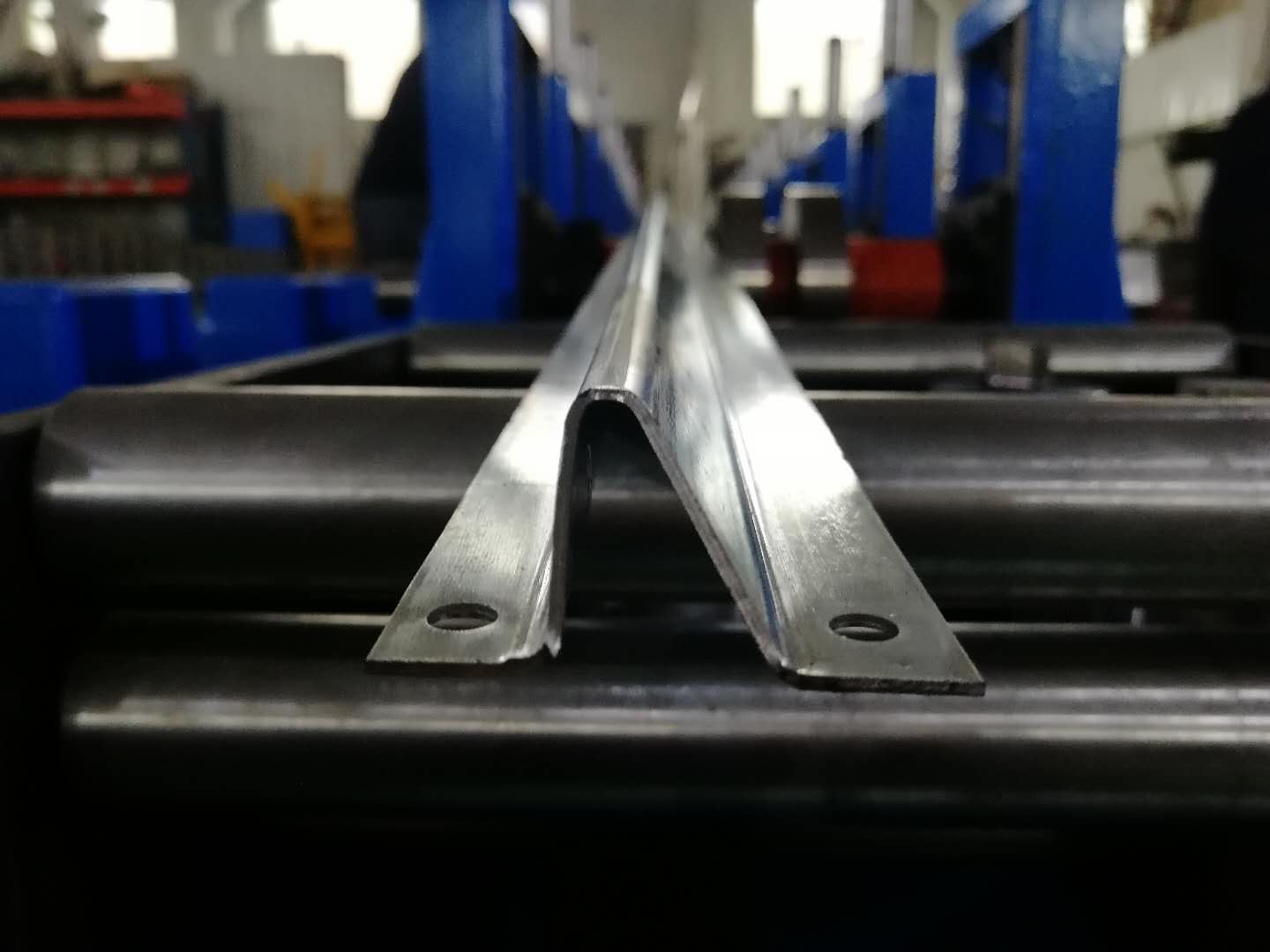

Z Beam Rivet Shelving Roll Forming Machine

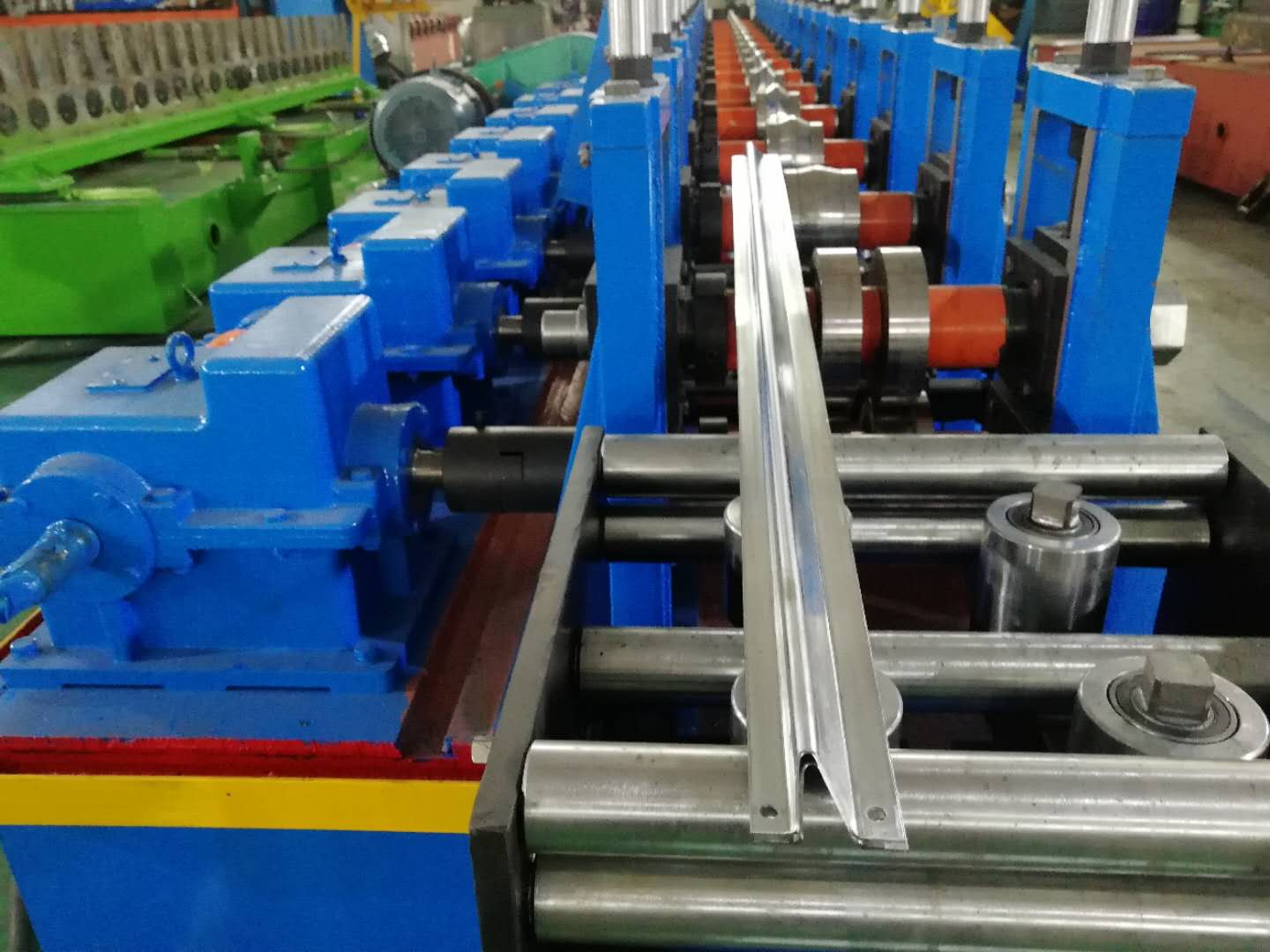

Rack Rivet Beam Making Machine

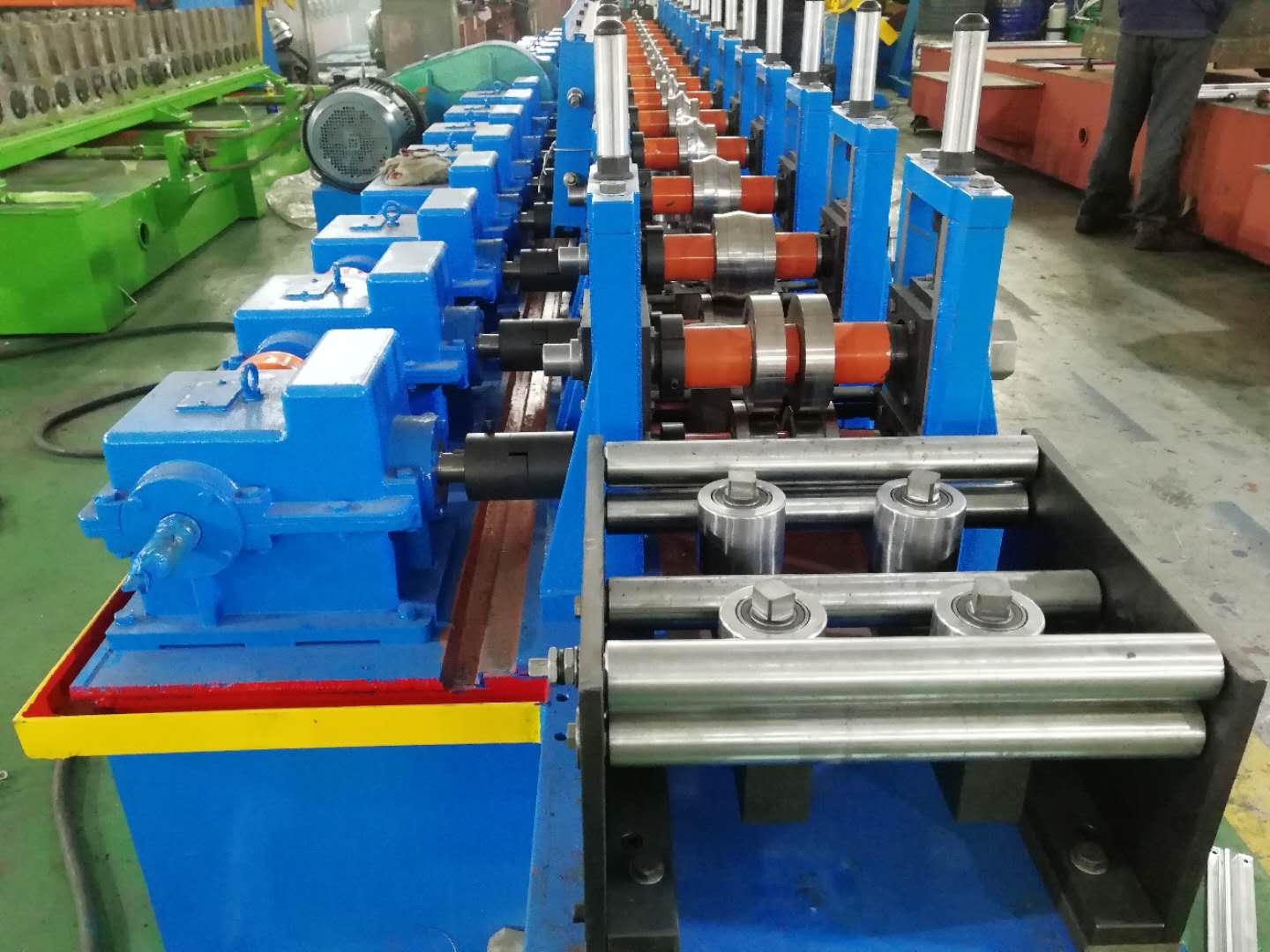

Rack Rivet Beam Roll Forming Machine
