Seismic Bracing Support Channel Roll Forming Machine
Seismic Bracing Support Channel Roll Forming Machine
Introduction
Seismic Bracing Support Channel Roll Forming Machine is designed to manufacture metal framing strut channel, which is commonly used for trapeze supports, seismic bracing, ceiling grids, pipe, conduit, duct and cable tray supports, racks, and other general framing.
The machine is composed of decoiler, leveler, servo feeder, punch, main forming, cutting device, outer table, etc. Fully automatically controlled by PLC control system, our seismic bracing support channel roll forming machine has the advantage of easy operation and fast efficiency.
Technical Parameter
1. roller stations: 30 stations
2. roller material: GCr15
3. shaft mateiral: 40Cr
4. forming speed: 15m/min
5. main motor power:22Kw
6. machine weight: about 25 tons
7. machine size: about 25000mm (L) x 1600mm(W) x 1500mm( H)
Seismic Bracing Support Channel Drawing
Unistrut channel

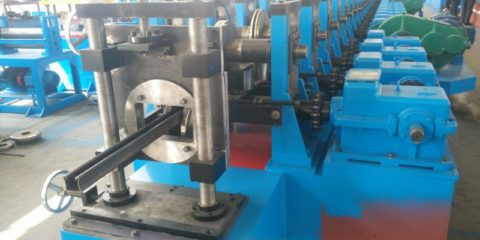

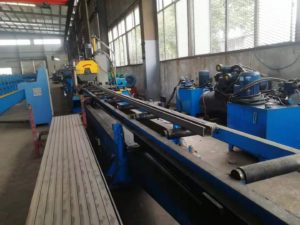

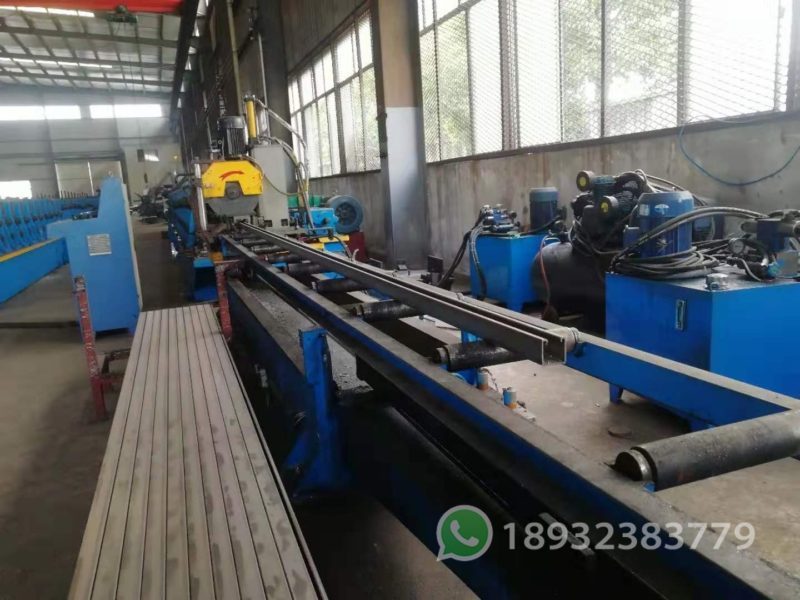

Machine Photo

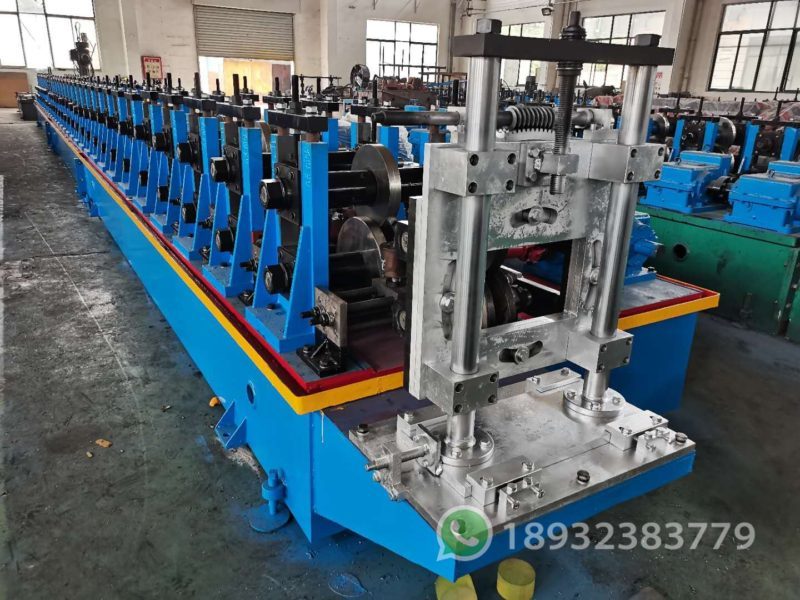

Unistrut Seismic Bracing Channel Roll Forming Machine

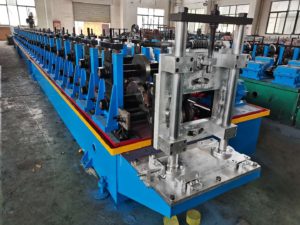

Seismic Bracing Channel Roll Forming Machine
Application

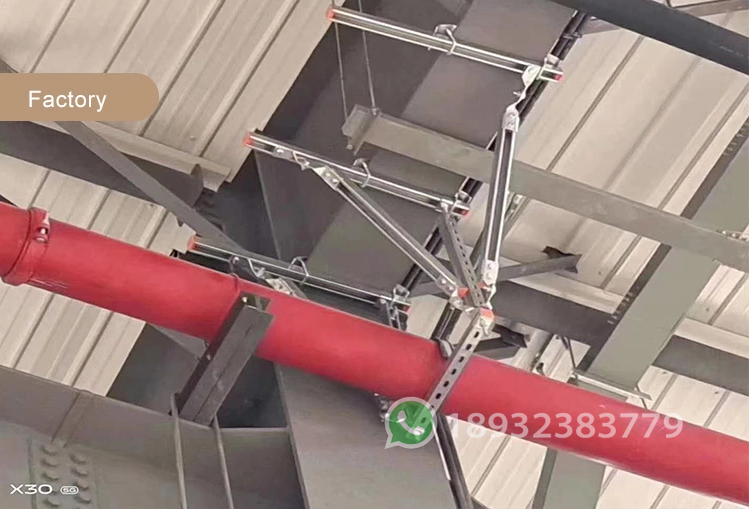

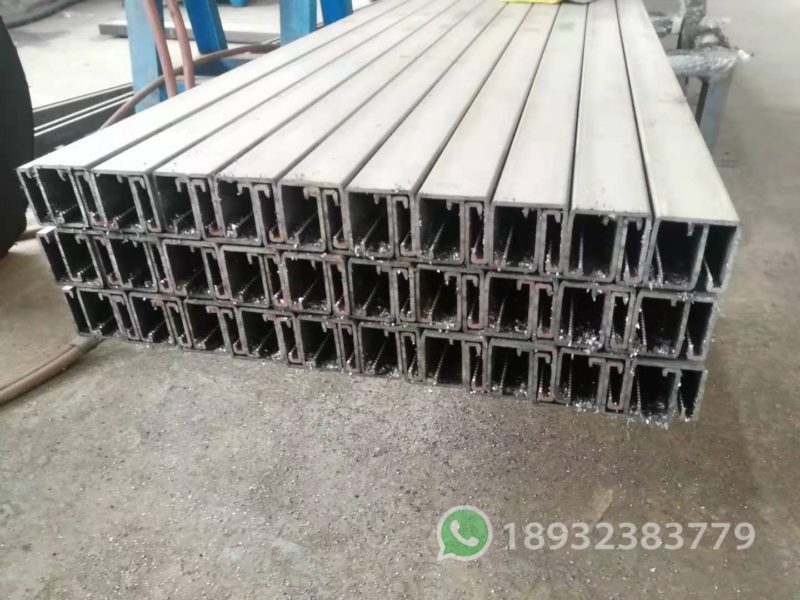

Seismic Bracing Support Channel

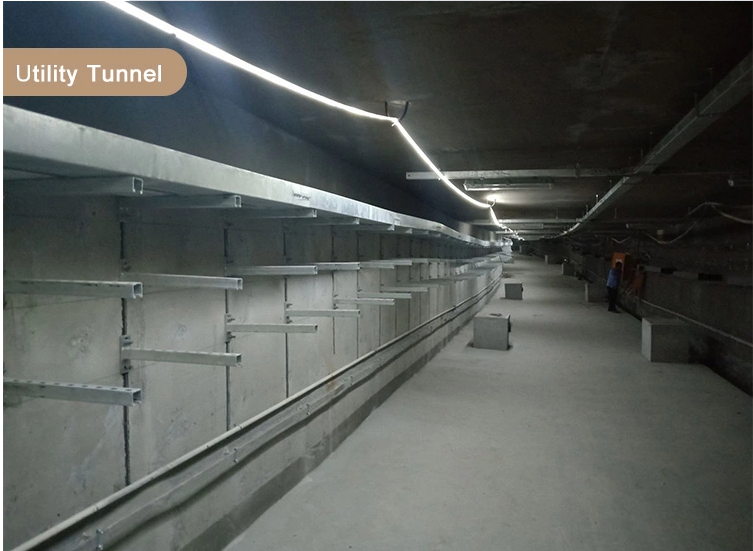

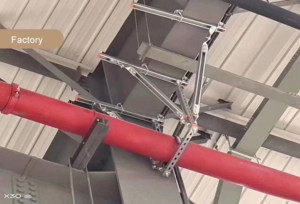

Unistrut Seismic Bracing application for utility tunnel

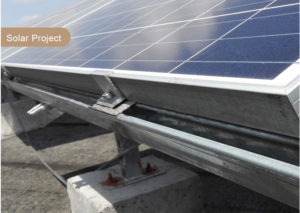

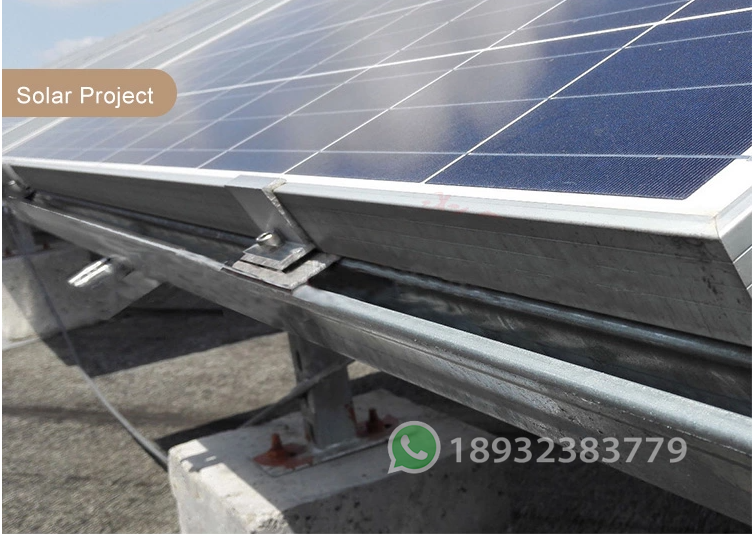

Unistrut Seismic Bracing application for solar project
