Stainless Steel Flying Shear Cut To Length Line

Stainless Steel Flying Shear Cut To Length Line

Introduction

Stainless Steel Flying Shear Cut To Length Line is  the cut to length line machine most suitable for stainless steel sheet, which has the advantage of higher precision and higher efficiency, also can save a lot space area for our customers.

We are specialized manufacturer of cut to length line, slitting line machine, especially for high standard stainless steel flying shear cut to length line machine, which satisfy customer higher precision cut to length quality requirement. Our Stainless steel flying shear cut to length line is composed of V-shape saddle coil-loading car,Cantilever uncoiler + overarm press roller + paper peeler,6hi Leveler with coil-head shoveler, filming device or paper laminating machine, pinch length fixer, fly shear, conveyor belt, dual stacker(include scissor table), outer put table, hydraulic system and electrical system.

Main Technical Parameter

1. line speed: 0-80m/min
2. material thickness: 0.3-5.0mm
3. cutting length: 300mm-4000mm
4. cutting length tolerance:L=2m≤±0.3mm（2.0mm）
5. Diagonal length tolerance:L=2m≤±0.5mm（2.0mm）
6. Total power: about 320KW
7. Land area: 25m length x 9m width

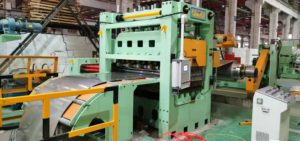

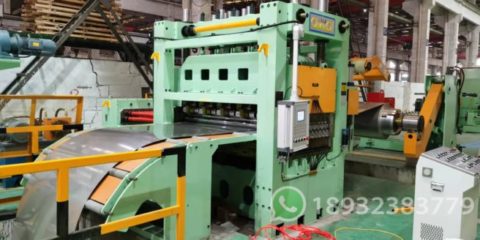

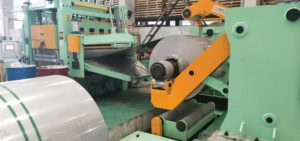

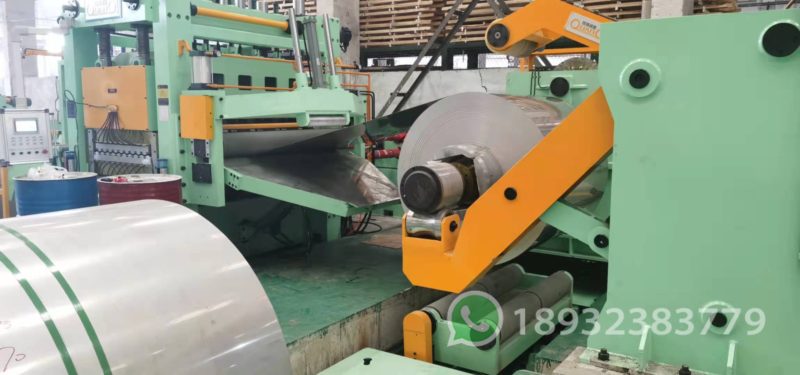

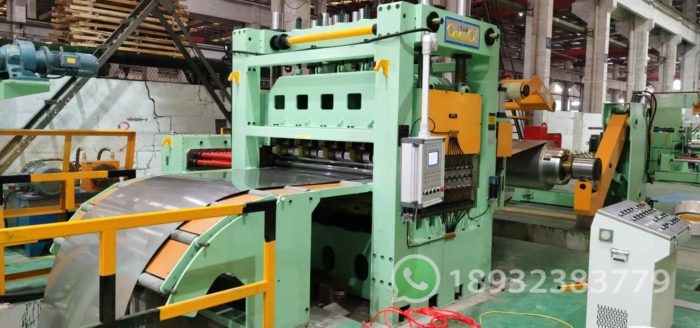

Photo of Stainless Steel Flying Shear Cut To Length Line

Stainless Steel Flying Shear Cut To Length Line

Stainless Steel Flying Shear Cut To Length Line
