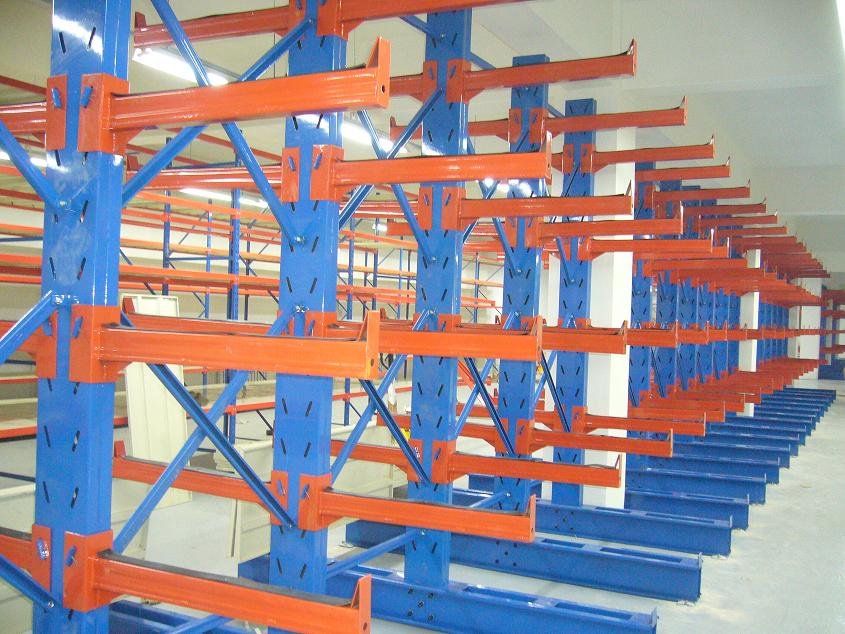

Warehouse Cantilever Rack Introduction
Warehouse cantilever rack consist of three components, uprights, arms and brace sets.It’s a great solution for storage of long & bulky materials,
such as pipes, lumbers and cars. The arm’s length and height can be increased and adjusted freely. Unlike conventional steel construction, it can be
easily installed and dismantled without any welding or cutting. We can provide various upright height, arm length( single or double sides) to give you
an ideal solution for your warehouse.
Warehouse Cantilever Rack Features
1. Material: High quality Q235.
2. Uprights section: Double C type 90mm pitch for height adjustment.
3. Box beam : Double C type, 120*90mm,/140*90mm,/150*90*2.0mm, 160*90*2.0/2.5mm, 180*90*2.5/3.0mm, 200*90/220*90*3.0mm
4. Load capacity: can up to maximum 100~2000kg/level.
5. General size:
Length: 500~1800mm
Depth: 500~4000mm
Height: 1000~7000mm
Layers of beam: 3~8 layers
Size can be customized!
6. Surface treatment: Play steel sand to intensify the structure, Electrostactic powder coating.Orange, blue, yellow, other color is available

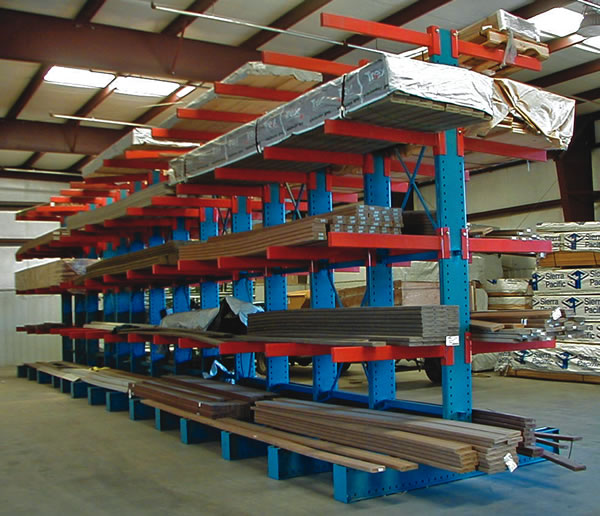

Warehouse Cantilever Rack Application
Further information is available via contact us to discuss whether or not warehouse cantilever rack is the right racking solution for your company.
